POST DETAIL
- Posts are 2 1/4” square complete with post cap, welded rail sleeves and attached 4” square aluminum base plate that is ACQ corrosion-resistant.
- Constructed of high strength aluminum alloys to meet or exceed national building codes.
- Most common post height used on decks that are above grade.
- Approved for Residential, Commercial and Multi-Family applications up to 12-storeys.
42 inch Post Description:
RCP: Corner Post (2 1/4" x 2 1/4" x 42"H)
Welded brackets at 90° to connect rails to posts
REP: End Post (2 1/4" x 2 1/4" x 42"H)
Welded brackets to connect rails to posts
RLP: Line Post (2 1/4" x 2 1/4" x 42"H)
Welded brackets to connect rails to posts
RSP: Stair Post (2 1/4" x 2 1/4" x 42"H)
For use with angle bracket or post bracket in stair, angle or custom applications
RP45: 45° Angle Post (2 1/4" x 2 1/4" x 42"H)
Welded brackets connect rails to posts at 45° angle
ILSP: In-Line Stair Post (2 1/4" x 2 1/4" x 36"H)
Undermount post to attach Top rail between top and bottom of stairs
Includes bottom Universal Angle Bracket
Note: Fasteners sold separately
Finishing Accessories:
Base Plate Cover
- 2 1/4" Post Base Plate Cover.
- Two piece cast aluminum base plate cover.
- Wraps post base to hide fasteners and provide a finished appearance
Decorative Post Caps
Snap on aluminum cap to replace standard cap
- Ball Post Cap (DPC-B)
- Pyramid Post Cap (DPC-P)
- Tower Post Cap (DPC-T)
Sidemount Post Bracket
- Fascia mount bracket for End Post, Line Post, Stair Post or Inside Corner Post)
- Fasteners sold separately
Sidemount Corner Post Bracket
- For Outside Corner fascia applications
- Fasteners sold separately
Fascia Mount Post Brackets
Eliminate drilling fasteners through your top decking/substrate by attaching your posts to the fascia using Regal ideas Side and Corner Mount Post Brackets.
- For use with 2 1/4" x 2 1/4" Regal ideas posts.
- Simply unbolt the existing post base place and slide posts onto the side/corner mount brackets.
- Meets or exceeds code requirements in areas that prohibit you to drill into your substrate.
- Available in all Regal Aluminum Railing colors.
- Gives your deck that extra space.
- Easier for cleaning and sweeping of your deck, no posts to clean around.
- Made from 100% high grade aluminum alloys and coated with a premium UV powder coated finish.
NEW 4″ x 4″ Aluminum Posts!
- Posts are 4” x 4″ square complete with post cap and welded rail sleeves.
- Attached 6” square aluminum base plate that is ACQ corrosion-resistant.
- Constructed of high strength aluminum alloys to meet or exceed national building codes.
- Most common post height used on decks that are above grade.
- Approved for Residential, Commercial and Multi-Family applications up to 12-storeys.

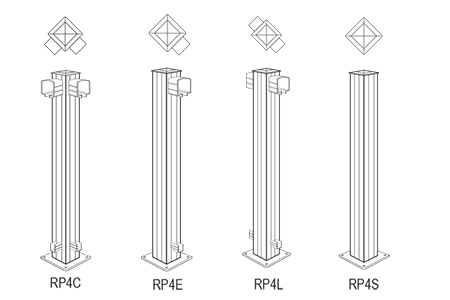

4x4 inch Post Description:
RP4C: Corner Post (4" x 4" x 42"H)
Welded brackets at 90° to connect rails to posts
RP4E: End Post (4" x 4" x 42"H)
Welded brackets to connect rails to posts
RP4L: Line Post (4" x 4" x 42"H)
Welded brackets to connect rails to posts
RP4S: Stair Post (4" x 4" x 42"H)
For use with angle bracket or post bracket in stair, angle or custom applications
Note: Fasteners sold separately
Finishing Accessories:
Base Plate Cover
- 2 1/4" Post Base Plate Cover.
- Two piece cast aluminum base plate cover.
- Wraps post base to hide fasteners and provide a finished appearance
Decorative Post Caps
Snap on aluminum cap to replace standard cap
- Ball Post Cap (DPC-B)
- Pyramid Post Cap (DPC-P)
- Tower Post Cap (DPC-T)
Sidemount Post Bracket
- Fascia mount bracket for End Post, Line Post, Stair Post or Inside Corner Post)
- Fasteners sold separately
Sidemount Corner Post Bracket
- For Outside Corner fascia applications
- Fasteners sold separately
- 36” High Regal Aluminum Railing is available using standard 3/4” pickets only.
- Tempered Glass and Decorative Pickets not available for this railing height.
- Posts are 2 1/4” square complete with post cap, welded rail sleeves and attached 4” square aluminum base plate that is ACQ corrosion-resistant.
- Constructed of high strength aluminum and premium UV powder coated finish provides maximum durability and low
- Check with local codes for installation height restrictions.
36 inch Post Description:
RCP36: Corner Post (2 1/4" x 2 1/4" x 36" H)
Welded brackets at 90° to connect rails to posts
REP36: End Post (2 1/4" x 2 1/4" x 36" H)
Welded brackets to connect rails to posts
RLP36: Line Post (2 1/4" x 2 1/4" x 36" H)
Welded brackets to connect rails to posts
RSP36: Stair Post (2 1/4" x 2 1/4" x 36" H)
For use with angle bracket or post bracket in stair, angle or custom applications
Note: Fasteners sold separately
Finishing Accessories:
Base Plate Cover
- 2 1/4" Post Base Plate Cover.
- Two piece cast aluminum base plate cover.
- Wraps post base to hide fasteners and provide a finished appearance
Decorative Post Caps
Snap on aluminum cap to replace standard cap
- Ball Post Cap (DPC-B)
- Pyramid Post Cap (DPC-P)
- Tower Post Cap (DPC-T)
- 60” High Regal Aluminum Railing, works with Regal rails, post caps, wall and universal angle brackets.
- Posts are 2 1/4” square complete with post cap, welded rail sleeves and attached 4” square aluminum base plate that is ACQ corrosion resistant.
- Constructed of high strength aluminum alloys and premium UV powder coated finish.
- For Ground Level Applications Only.
- Please refer to you local Building Codes for attachment requirements and details when applying for a Pool Wall permit.
60 inch Post Description:
WRCP: Pool/Wind Wall Corner Post
2 1/4" x 2 1/4" x 60" H
Welded brackets at 90° to connect rails to posts
WREP: Pool/Wind Wall End Post
2 1/4" x 2 1/4" x 60" H
Welded brackets to connect rails to posts
WRLP: Pool/Wind Wall Line Post
2 1/4" x 2 1/4" x 60" H
Welded brackets to connect rails to posts
Note: Fasteners sold separately
Finishing Accessories:
Base Plate Cover
- 2 1/4" Post Base Plate Cover.
- Two piece cast aluminum base plate cover.
- Wraps post base to hide fasteners and provide a finished appearance
Decorative Post Caps
Snap on aluminum cap to replace standard cap
- Ball Post Cap (DPC-B)
- Pyramid Post Cap (DPC-P)
- Tower Post Cap (DPC-T)
